A bespoke Toshiba air conditioning system is being used to cool a state-of-the-art transportable MRI scanner, the first of its kind to be developed by Toshiba Medical Systems.
The transportable facility enables high-resolution scans of individual limbs or the whole body to be carried out on location. Vital cooling for the diagnostic unit has been provided by Just Air Conditioning, working with Toshiba distributor, AMP.
The supplier provided a modified vertically-ducted VRF unit, twinned with a split system condensing unit, to deliver the cooling required for the facility’s examination room.
Wayne Raven, who headed up the project for Just Air Conditioning, said: “Due to the powerful magnetic fields generated in the examination area, it is not possible to site air conditioning within the room itself. We, therefore, designed a special ducted system, which had to pass through a radio-frequency cage, to keep the specialist equipment cool and ensure patients and staff remain comfortable at all times.”
At the heart of the scanner is a 5.5-tonne electromagnet cooled by liquid helium, linked to sophisticated computer analysis equipment to give very high-resolution scans of limbs or a patient’s whole body.
Space was a major design consideration in the project, as MRI scanners are normally located in their own suites within hospitals.
“Designing a transportable MRI facility involves very careful planning to ensure all the equipment, essential cooling and facilities for staff and patients are accommodated,” said Raven.
“We collaborated on the design with WH Bence Coachworks, which built the transportable unit, using 3D modelling design software to ensure every millimeter of space was used to best advantage.”.
In addition to the ducted cooling unit, two further split air conditioning systems were required – one for the control room and another, ceiling-suspended, in the facility’s technical room. Each is equipped with its own condensing unit, sited on the front bulkhead of the transportable MRI unit.

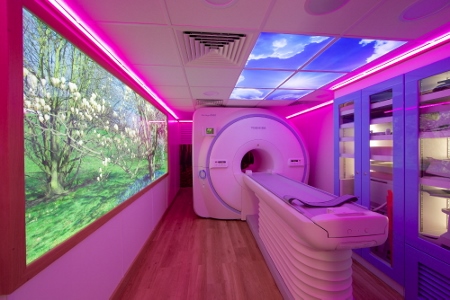

Patient comfort is a high priority, and as well as being air conditioned, the examination room is equipped with the latest mood lighting systems, which can be programmed to create a range of different ambient effects and atmospheres.
Just Air Conditioning is now working with WH Bence on the air conditioning for 10 mammogram scanners for deployment in hospitals in Ireland and the south of England. They will also be cooled using Toshiba air conditioning systems.
