Airedale General Hospital is using a new geospatial system to help manage its RAAC monitoring and repairs programme.
Airedale General Hospital is believed to be the first hospital in the UK to use this geospatial system for RAAC management,

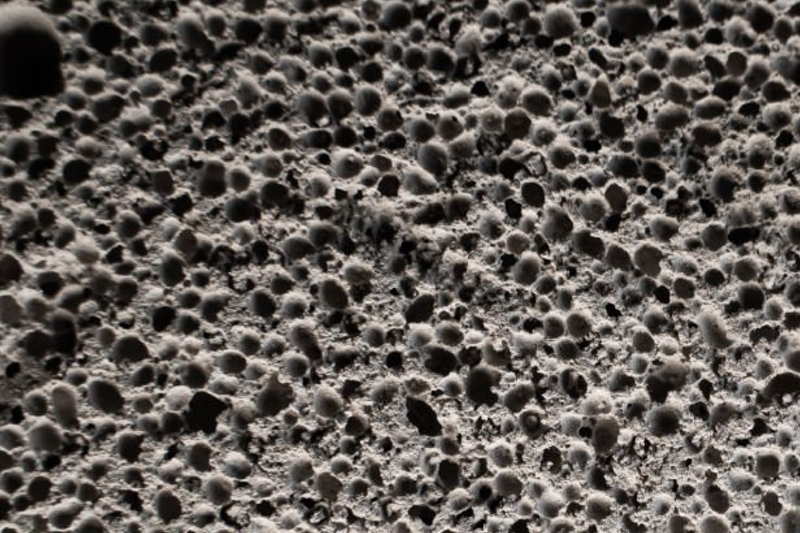

Reinforced autoclaved aerated concrete (RAAC) is a form of lightweight precast concrete that is bubbly and less durable than traditional concrete.
Interest in the geospatial approach has been high as mapping the indoors helps organisations to understand the risk in a cost-effective, accurate and efficient way
Using GIS (Geographic Information System) software from Esri UK, the system replaces paper-based processes with digital workflows to improve the accuracy and efficiency of RAAC inspections.
The GIS software helps to maintain the safe operation of the hospital by revealing where the highest risk areas are in real-time, which informs the mitigation works, including:
- Temporary propping
- Steel reinforcements and fixing roof leaks
Developed by Esri UK partner BIS Consult, using Esri’s ArcGIS system, the solution has introduced 50% efficiency savings in the RAAC surveying process, which involves a team of eight inspecting 20,000 RAAC planks across 52 departments.
Airedale General Hospital has one of the highest quantities of RAAC panels in the NHS, with 83% of the hospital’s floors, walls, and ceilings made of the material.
Built in the late 1960s, the hospital near Keighley, West Yorkshire first discovered its RAAC problem five years ago and is due to be rebuilt by 2030 as part of the government’s New Hospital Programme.
The RAAC inspection process
Previously, the RAAC inspection process relied on hand-written surveys to record defects, including cracks, movement or moisture, which were then transferred into Excel.
Photos were uploaded manually and separate paper floor plans were updated to show the changes to risk across each ward.
Inspection data is now collected on iPads using custom forms
In 2023, Airedale General Hospital identified the need for a more sophisticated method to help perform complex calculations for tracking defects and monitoring how different sections of planks were deteriorating at different rates.
Inspection data is now collected on iPads using custom forms.
Surveying electronically has dramatically reduced the time needed to record, analyse and report on defect data, making the surveying process 50% more efficient.
Inspection data helps dictate the risk rating of each plank.
Planks are surveyed either monthly, 3-monthly, 6-monthly or yearly, depending on their rating, in line with current guidance.
The Esri GIS has given us a more robust and resilient process
The output helps instruct the survey team which wards they need to survey and which planks are due for inspection.
Richard Burgin, Estates Project Manager of Airedale General Hospital explained: “The existing manual survey process was not capable of dealing with the sheer volume of work."
"It became obvious the hospital needed a single, joined-up view of RAAC risk to generate the inspection frequencies and the ongoing programme of remediation works," Burgin continued.
"The Esri GIS has given us a more robust and resilient process, with a reduced risk of human error that instantly shows different levels of risk so we know where to focus. RAAC has a major operational impact, sometimes disturbing clinical and operational functions so surveys and mitigation work needs to be accurate and fast and the system underpins that,” Burgin concluded.
Patterns of deterioration identified
Improved insights are now generated faster than before, as the GIS can run different spatial analysis and scenarios, including tracking monthly changes in residual risk and providing detailed information relating to each specific concrete plank.
Patterns of deterioration can be clearly seen and investigated on an estate map, overlaid with drone imagery, which helps all stakeholders understand the problem more easily.
Factors that impact RAAC, such as the location of utilities and services, the orientation of a building, and prevailing weather can all be better assessed using this method.
The digital workflow also provides Airedale with a solid audit trail which helps with compliance and reporting, which is directly linked to the government funding it receives to manage RAAC.
Future plans for Airedale General Hospital
Future plans at Airedale General Hospital include the creation of dashboards to further enhance how RAAC data is reported and consumed, allowing hospital staff to self-serve and generate their own statistics using different parameters.
KPIs will be available on the dashboards to further aid the management of the problem from an operational and financial perspective.
Paul Clarke, Head of Government at Esri UK said: “The Airedale General Hospital project is the first of its kind in the UK and showcases best practice in the advancement of RAAC management."
Using dashboards to visualise the data makes it easy to share new insights with key stakeholders, from board directors to contractors
"Defining the risk from RAAC is a significant challenge across the public sector, including hospitals, schools and other public buildings. Interest in the geospatial approach has been high as mapping the indoors helps organisations to understand the risk in a cost-effective, accurate and efficient way and then prioritise mitigation works. It helps keep buildings safe, open and delivering services to the public,” Clarke continued.
"Using dashboards to visualise the data makes it easy to share new insights with key stakeholders, from board directors to contractors. People have been using maps in the outdoor world for centuries but indoor mapping is relatively new. Moving indoors with mapping opens up many new benefits to help manage assets, from RAAC to asbestos,” Clarke concluded.
